اخبار کارتهاي گرافيک

[AZBY 0]

عجب اوركلاكي...................فن كلا مسي هست درسته؟

[MR PC 1849]

عجب اوركلاكي...................فن كلا مسي هست درسته؟

درود

بله دوست عزیز واقعا از قابلیت اورکلاک خوبی این کارت برخوردار هست .فن که خیر ولی هیت سینک بله مسی هست .

موفق باشید

[MR PC 1849]

As we already explained last week, A part of geForce 9800 GT will be just the good old geForce 8800 GT. In this case the GeForce 9800 GT will based on 65 nm g92 video chip , and there is no hybrid power technology support .

According to available data, the announcement Of geForce 9800 GT will take place tomorrow. We start from the description of the fastest video card from Asus , EN9800GT ULTIMATE/HTDP/512M. This card has the frequencies 725/1750/2000 MHz, 256- bit bus, and it is equipped with 512mb GDDR-3 memory .

The cooling system occupies two slot, but for cooling the overclocked core such cooler will possess a sufficient effectiveness. Asus will also present four video card GeForce 9800 GT:

EN9800GT HYBRIDPOWER/HTDI/1G;

EN9800GT HYBRIDPOWER MATRIX/HTDI/512M;

EN9800GT TOP/HTDP/512M;

EN9800GT YBRIDPOWER/HTDI/512M.

Asus separates video cards, which possess support to hybrid power technology . One of them will obtain 1Gb GDDR-3 memory .

[AZBY 0]

مگه قرار نبود اين كارت با تكنولوژي 55 نانو متري ساخته بشه؟يا من اشتباه ميكنم؟

[MR PC 1849]

مگه قرار نبود اين كارت با تكنولوژي 55 نانو متري ساخته بشه؟يا من اشتباه ميكنم؟

درود

درست حدس زدید دوست عزیز.قرار بود با تکنولوژی 55 نانومتری ساخته بشه و از چیپست G92 B استفاده بشه .تا تثبیت کامل این اخبار توسط سایر برند ها هم باید منتظر بمانید.

[MR PC 1849]

Galaxy presented immediately seven 9500GT version . Thus, for instance, low profile adapters (2 units of 7 cards) will find their use inside the home centers (digital entertainments or home cinemas ) (HTPC), other cards will arrange economical users (even in games), since they have the increased operating frequencies - factory overclocked versions (also 2 units from 7). There are also some card for those who fanatically buy video cards exclusively due to the high video memory volume . This producer granted the widest selection to buyer . The summary characteristics are given in the table below:

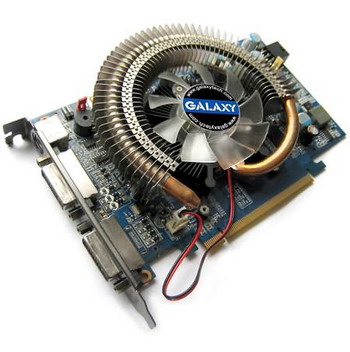

The most interesting model will be probably galaxy geForce 9500GT GDDR3 OC , which is the highest overclocked card equipped with powerful cooling system with thermal tubes.

[MR PC 1849]

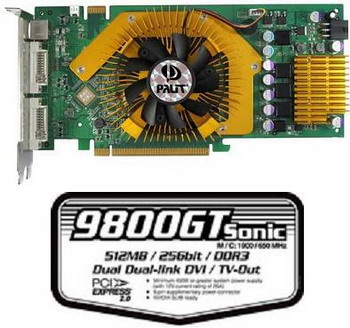

palit 9800

Today palit company presented three new video card on base of the video processor NVIDIA geForce 9800GT with support to NVIDIA SLI technology . The new products series includes adapter with reference design , the version SUPER+ with 1 GB memory and the overclocked card series SONIC.

Palit geForce 9800 GT SUPER+1GB has these operating frequencies: 600/1800 MHz (chip/memory ). Memory access interface is 256- bit. Palit geForce 9800 GT SONIC - overclocked version, has 50 MHz higher chip frequency , and the memory is overclocked by 100 MHz (650/1900 MHz ). All three cards support directX 10, shader model 4.0, NVIDIA pure-Video HD technology, CUDA, hybrid power and PhysX; they are equipped with two dual-link DVI.

[MR PC 1849]

BFG Technologies, the leading North American and European supplier of advanced NVIDIA-based 3D graphics cards, power supplies and other PC enthusiast products, announced today the BFG NVIDIA GeForce 9800 GT, 9800 GT OC, and the GeForce 9500 GT graphics cards. All three new BFG graphics cards offer best-in-class price versus performance, and are backed by free 24/7/365 world-class tech support and the best lifetime warranty in the industry.

[MR PC 1849]

ZOTAC International today also unveils its new lineup of budget graphics cards based on NVIDIA’s new GeForce 9500 series graphics processors. The latest GeForce 9500 series lineup delivers extreme levels of visual reality at affordable prices and consists of the ZOTAC GeForce 9500 GT AMP! Edition, GeForce 9500 GT DDR3 and GeForce 9500 GT

.

[AZBY 0]

با سلام.

دوستان 260 gtx قويتره يا 4870 ? طبق مقايسه بالا 260 gtx. ولي تو خيلي سايتها نتايج به نفع 4870 است.البته همونطور كه ميدونيد منبع تست بالا سايت بسيار معتبريه.نظر دوستان چيه؟

[MR PC 1849]

با سلام.

دوستان 260 gtx قويتره يا 4870 ? طبق مقايسه بالا 260 gtx. ولي تو خيلي سايتها نتايج به نفع 4870 است.البته همونطور كه ميدونيد منبع تست بالا سايت بسيار معتبريه.نظر دوستان چيه؟

درود

دوست عزیز به طور کلی GTX 260 فاصله کمی رو با 4870 داره.به این صورت که در بعضی موارد 4870 جلوتر هست و در بعضی موارد GTX 260 و البته باز این اختلاف نتایج در نرم افزار ها و بازیهای مختلف سایتهای مختلف و در روزلیشن های متفاوت بیشتر متغیر هست ولی به طور کلی 4870 به دیلیل بهر مندی از حافظه گرافیکی GDDR5 از برتری بیشتری برخوردار هست.

[MR PC 1849]

LEADTEK WINFAST GEFORCE 9800 GT/9500 GT

CHAINTECH AND POINT OF VIEW 9500 GT

[AZBY 0]

سلام.

از لحاظ مصرف چطورند؟منظورم 260 gtx در مقابل 4870؟

نتيجه اي كه ميشه گرفت اينه كه اول ما بايد مشخص كنيم تو چه رزولوشني ميخوايم بازي كنيم.اين خيلي مهمه.مثلا در crysis در رزولوشن 1280*1024 حتي در hight detail يك كارت 8800 gtx هم كفايت ميكنه.كه اونم با اين قيمتي كه تو ايران داره خوب ادم با خودش ميگه يا همون 4870 رو ميگيرم يا 260 gtx.

[MR PC 1849]

سلام.

از لحاظ مصرف چطورند؟منظورم 260 gtx در مقابل 4870؟

نتيجه اي كه ميشه گرفت اينه كه اول ما بايد مشخص كنيم تو چه رزولوشني ميخوايم بازي كنيم.اين خيلي مهمه.مثلا در crysis در رزولوشن 1280*1024 حتي در hight detail يك كارت 8800 gtx هم كفايت ميكنه.كه اونم با اين قيمتي كه تو ايران داره خوب ادم با خودش ميگه يا همون 4870 رو ميگيرم يا 260 gtx.

درود

به طور کلی مصرف 260 یک مقدار پایینتر هست

.

[shayan08 196]

دوستان عزیر مواظب خرید 9800 جی تی باشید پون این کارت همون 8800 جی تی های انویدیاست با تغییر بایوس.

[MR PC 1849]

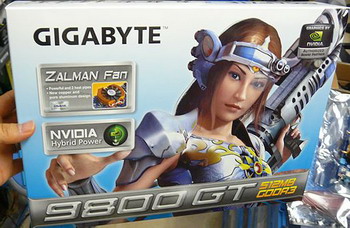

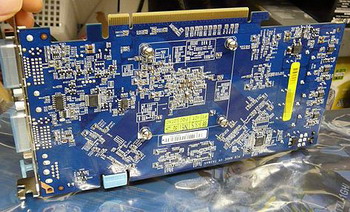

Since the geForce 9800 GT is the successors Of geForce 8800 GT, the majority of NVIDIA partners released many alternative versions. Gigabyte company , for example, presented the video card GV-N98TZL-512H with 512 MB memory and Zalman cooler .

In the near future gigabyte will release the version GV-N98TZL-1GH with 1Gb GDDR-3 memory . The first card already appeared in Japan for approximately $185, the card default frequencies are 600/1500/1800 MHz. Gigabyte mentions about the use of 65 nm g92 video chip , but in this case on the video card box it is possible to reveal a notification about the support to hybrid power technology . This once more proves, that this function is not attached to 55 nm g92b Chip.

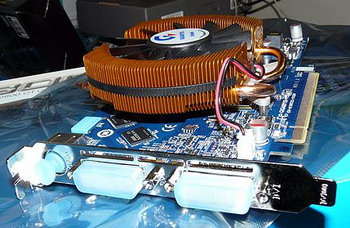

The main advantage of this card is the high-quality cooler form zalman production . There are no radiators on the memory microcircuits

[MR PC 1849]

Nvidia's plan to shift from 65nm to 55nm to lower costs is baring fruit and we have the first 9800 GT 55nm in our hands. The biggest difference compared to the 65nm verison is its support for HybridPower technology that is not included on 65nm based 9800 GT cards.

The new core is revision B and it has a smaller die size (55nm - ca. 270mm2 ) compared to revision A (65nm - ca. 330mm2).

:)

During the die shrink on the G92 from 65nm to 55nm nothing in terms of architecture was changed. We still have 112 stream procesors with 16 ROPs. Actually the Geforce 9800 GT is identical to the Geforce 8800 GT, it has the same specifications except HybridPower support on 9800 GT 55nm cards.

We showed you Sparkle's passively cooled 9800 GT card here, but what we did not know at that time is that it was based on 55nm GPU.

We ran GPU-Z and it displayed the specs showing us that Sparkle's card is based on the old 65nm GPU. Later on, we found more time to play with the Sparkle's 9800 GT card, and after we took the cooler off, we saw the 55nm GPU behind.

We have a nice picture where you can see it is physically smaller than previous revision A chip. The one with the blue PCB is Sparkle's 9800 GT, and below you can see an 8800 GT.

[MR PC 1849]

Although it's anything but expected, HIS seems to be one of the first of AMD's partners after Sapphire and PowerColor to have finished off its own in-house Radeon HD 4850 design with the the addition of an IceQ 4 heatpipe cooler on it.

HIS has gone for a blue PCB and the IceQ 4 cooler means that we're looking at a dual slot design. Although this is unlikely to cause any problems for most, it's a shame that a better single slot cooling solution couldn't be made. The new cooler should at least run quieter than the reference cooler.

The card will have 512MB of GDDR3 memory, but no other specification details were revealed, although we'd expect these cards to be clocked faster than the reference designs. As with previous HIS designs, this card will feature gold plated DVI connectors and HIS is bundling a DVI to HDMI adaptor with the card

درود

mr pc جان با این مطلب مشخصه که دارن کم کم روی 4850 به نحوهای مختلفی مانور میکنن و مطمئنا بهتر از اینها هم خواهد شد . الان هر چی موجود توی بازار هستش با همون فن ساخته شده ATI هستش ولی تا چند وقت دیگه همه چیز مثل کارتهای دیگه تغییر میکنه .

درود

جناب حسینی همونطور که در اخبار قبلی که قرار داده بودم ذکر شده بود و شما هم فرمودید معلوم هست که طبق روال گذشته کمپانی های مختلف دارند به نحو های گوناگون روی این کارت های جدید تغیراتی رو ایجاد میکنند و چه ار لحاظ سیستم کولینگ و چه از لحاظ کلاک کاری این کارتها در جهت بالا بردن کارایی این کارتها ایجاد میکنند تا فاصله بیشتری رو از لحاظ کارایی با برد مرجع داشته باشند و سهم بیشتری از بازار رو به محصولاتشون اختصاص بدهند.جالب اینجاست که کارتهای 9800 و 9500 جی تی که مدت بسیار کمی از تولیدشون میگذره هم از سوی بعضی از کمپانی ها از همین بدو تولید با کولرهای غیر رفرنس ارایه شدند که اخبارشون در صفحات قبل قرار دارد.

.

[MR PC 1849]

After the success of its RV770 and refreshed DirectX 10.1 cards ATI wants to continue its winning streak with a DirectX 11 card.

We still don’t know the codename, but let's assume that the next generation performance / mainstream chip is codenamed RV870. This chip will likely have DirectX 11 support; at least this is what our sources believe at this time.

There is an important indication that RV870 might launch before DirectX 11 becomes available but this can only be a good thing for ATI, but if we were betting people we would suggest that such a chip should be available a year from now, in late Q2 or early Q3 2009.

[MR PC 1849]

AMD/ATI recently introduced the Radeon HD 4800 line-up of graphics cards, featuring the 55nm RV770 core. The cards have only just become available, but there are a lot of rumors on the RV770's successor already. It's been known for a while that the RV870 would be a die-shrink of the RV770, in other words, a smaller production process with the same architecture. AMD/ATI has now announced that the smaller process will be the 40nm one.

The 40nm RV870 3D-chip is codenamed Lil Dragon, AMD/ATI claims twice the performance-per-Watt compared to the RV770. Lil Dragon would be about 20% faster than it's predecessor, while maintaining a lower power consumption. It's rumored that the RV870 chip will feature 960 stream processors, the current RV770 has 800 of those.

[MR PC 1849]

HIS has officially launched its latest addition to the IceQ lineup of graphics cards, the HIS HD 4850 IceQ4 card. Unfortunately, the card is still working at reference clocks, 625MHz for the core and 1,986MHz for 512MB of GDDR3 memory. On the other hand, you do get a card that will certainly be less hot and less noisy than the reference one.

The card is cooled by the fourth generation of the IceQ cooling. According to the press release, the new IceQ cooling should bring increased cooling capacity of up to 20 percent under load. As it was the case with previous IceQ cooling series, this one also transforms the card to a dual slot solution with the ability to push the hot air out of the case.

The card is not yet available in Europe but we will keep our eye out as we hope that the price will not be much higher when compared to the reference cooled cards.

[MR PC 1849]

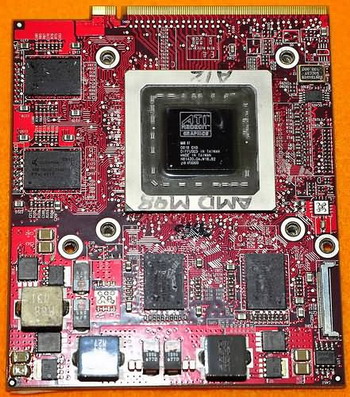

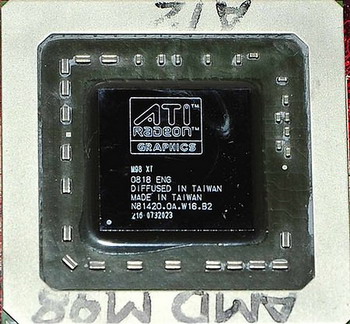

HD 4850 MOBILITY M98

The video card series radeon HD 4800 was successful for AMD , such cards will be accessible not only to desktop users but also in mobile computers. Here is the mobile version of video processor HD 4850, which obtained the designation code M98.

This module will include the 55- nm chip with 800 stream processors, supporting DX10.1, and equipped with 256mb memory volume ( up to 1 GB ), which will allow a comfortable gaming for laptop users

[MR PC 1849]

According to our associate, on 12 August AMD will officially release the 3d- accelerator ATI radeon HD 4870 X2. The recommended price of this card is equal to $499.

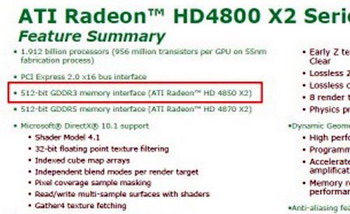

Due to the high price of GDDR5 memory , the difference between ATI radeon HD 4870 and ATI radeon HD 4870 X2 will compose $200. to fill the empty interval between these products , AMD will release the accelerator ATI radeon HD 4850 X2, which will be equipped with GDDR3 memory . The application of GDDR3 memory will allow to set the price of ATI radeon HD 4850 X2 in the range $399-449.

First accessible products will be based only on reference design. AMD partners will begin to obtain Graphic processors from the middle of August, original products radeon HD 4850 X2 will appear at the end of August or September.

[سعید حسینی 12550]

کارت Radeon Hd 4850 برای لبتاپ

درود

این دیگه خبر نبود یک کار فوق العاده از ATI بود با توجه به قیمتها و کیفیت مناسب ATI در نوت بوک هم مثل این چند ماه اخیر انقلابی بر پا میکنه .

[MR PC 1849]

Gainward is the strategic palit partner and it possess a sufficient engineering potential in order to release interesting products with its own design. Gainward company released the video card radeon HD 4850 Golden sample and Radeon HD 4850 with 512 mb GDDR-3 memory, with original cooling systems.

The first has aluminum cooler with two thermal tubes and central fan arrangement , the second is satisfied by a simpler cooler without thermal tubes. The first video card has higher frequencies - 700/2000 MHz against default 625/1986 MHz in the second .

The Cooling system occupy the space of adjacent expansion slot . In the delivery set enter the utility eXPERTool, which allow to control the video card clock frequencies , and also to follow the video chip temperature and the fan speed .Gainward also presented the video card radeon HD 3870 and Radeon HD 3850 ( own designs ). The memory capacity for the radeon HD 3850 can be equal to 256 mb., 512 mb. or 1 Gb.
