اخبار مادربردها و چیپست ها

[mfirouzi1989 2383]

G1.Sniper 5

http://www.gigabyte.com/products/product-page.aspx?pid=4487#ov

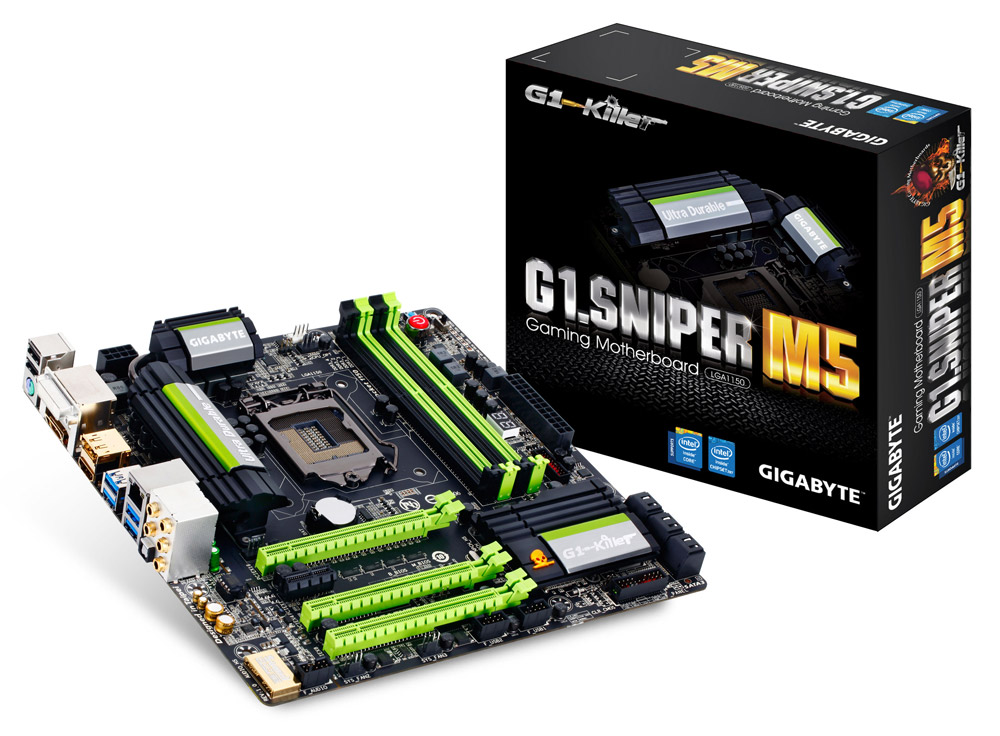

G1.Sniper M5

http://www.gigabyte.com/products/product-page.aspx?pid=4482#ov











GA-Z87X-OC Force

http://www.gigabyte.com/products/product-page.aspx?pid=4484#ov











GA-Z87X-UD5H

http://www.gigabyte.com/products/product-page.aspx?pid=4483#ov

[mfirouzi1989 2383]

ECS Z87H3-AX GOLDEN

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1453&CategoryID=1&DetailName=Feature&MenuID=181&LanID=0









Z87H3-A2X GOLDEN

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1476&CategoryID=1&DetailName=Feature&MenuID=181&LanID=0











ECS Z87H3-AX EXTREME

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1452&CategoryID=1&DetailName=Feature&MenuID=181&LanID=0











ECS Z87H3-A2X EXTREME

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1475&CategoryID=1&DetailName=Feature&MenuID=181&LanID=0

[mfirouzi1989 2383]

Z87H3-A4

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1466&CategoryID=1&DetailName=Feature&MenuID=172&LanID=0









H87H3-M

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1460&CategoryID=1&DetailName=Feature&MenuID=172&LanID=0









H87H3-M3

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1484&CategoryID=1&DetailName=Feature&MenuID=172&LanID=0









H87H3-M4

http://www.ecs.com.tw/ECSWebSite/Product/Product_Detail.aspx?DetailID=1485&CategoryID=1&DetailName=Feature&MenuID=172&LanID=0

[HeX 11091]

خوبه الایت گروپ خازنهای الکترولیت رو تقریبا کامل کنار گذاشته !

یادمه مین های X79 این برند تماما خازن جامد نبود....

[Mahyar23172 37]

                                            MSI Z87-GD65 Gaming



                                     http://www.msi.com/product/mb/Z87-GD65-GAMING.html



ویرایش شده ژوئن 13, 2013 توسط Mahyar23172

[mfirouzi1989 2383]

Hi-Fi Z87X 3D

http://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=647









Hi-Fi Z87W

http://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=646

[m!dn!ght 2560]

چرا همه شرکتها زدن تو کار طلایی و زرد؟ :p

[atisoc0936 2558]

چرا همه شرکتها زدن تو کار طلایی و زرد؟ :p



بیشتر تو چشه خوب  :wacko:

[mfirouzi1989 2383]

Z87 OC Formula/ac

http://www.asrock.com/mb/Intel/Z87%20OC%20Formulaac/









Z87M OC Formula

http://www.asrock.com/mb/Intel/Z87M%20OC%20Formula/











Fatal1ty Z87 Professional

http://www.asrock.com/mb/Intel/Fatal1ty%20Z87%20Professional/









Z87 Extreme9/ac

http://www.asrock.com/mb/Intel/Z87%20Extreme9ac/

[m!dn!ght 2560]

این asrock به شدت در حال پیشرفته

[mfirouzi1989 2383]

EVGA Z87 Classified

http://eu.evga.com/products/moreInfo.asp?pn=152-HW-E878-KR&family=Motherboard%20Family&series=&sw=5&uc=EUR









EVGA Z87 FTW

http://eu.evga.com/products/moreInfo.asp?pn=141-HW-E877-KR&family=Motherboard%20Family&series=&sw=5&uc=EUR









EVGA Z87 Stinger

http://eu.evga.com/products/moreInfo.asp?pn=111-HW-E872-KR&family=Motherboard%20Family&series=&sw=5&uc=EUR

[atisoc0936 2558]

دیدیم همه دوستان زدن تو کاره z87  گفتیم ما هم یه fx  بزاریم

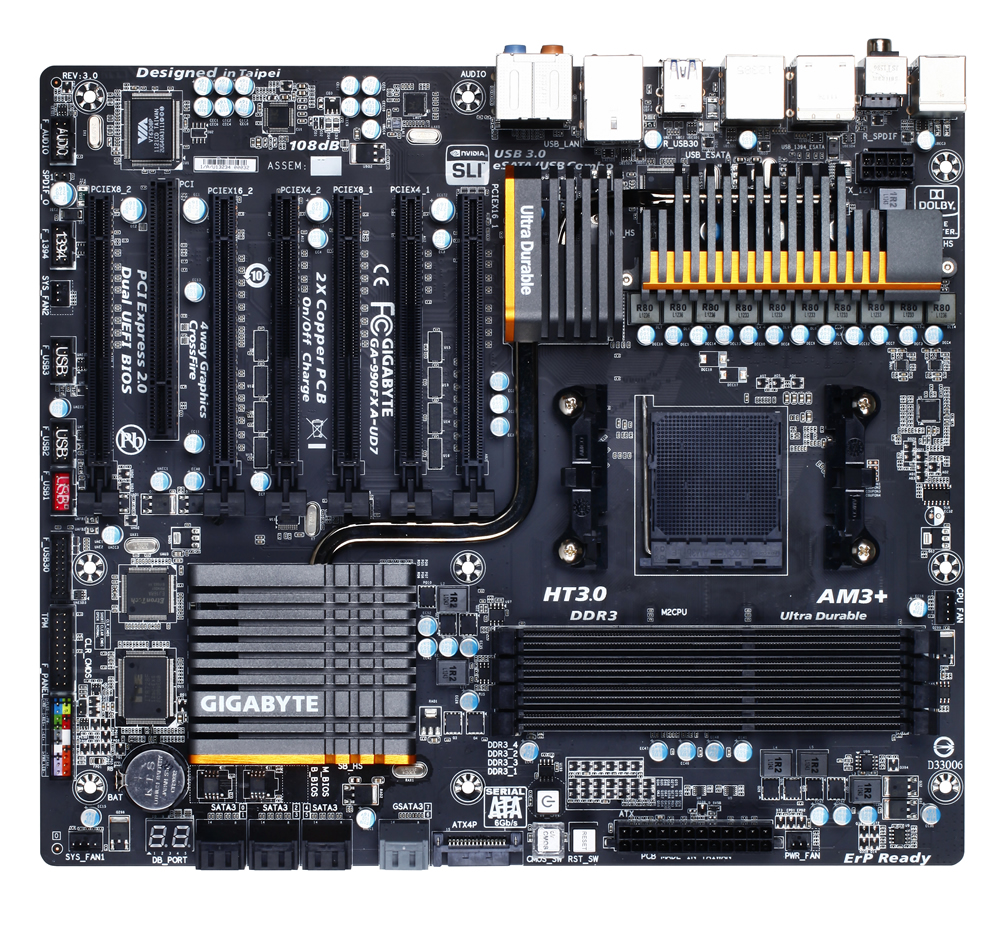

بعد از تولید 990fxa ud5  از شرکت گیگابایت با rev 3.0  امروز 990fxa-ud7  رو دیدم که با rev 3.0  گذاشته

گفتیم ما هم بزاریم واسه دوستان

درود





RSS

CPU AM3+ Socket:

1. AMD AM3+ FX processors
2. AMD AM3 Phenom™ II processors/ AMD Athlon™ II processors

(Please refer "CPU Support List" for more information.) Hyper Transport Bus

1. 5200 MT/s

Chipset

1. North Bridge: AMD 990FX
2. South Bridge: AMD SB950

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)
4. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.) Audio

1. Realtek^® ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby^® Home Theater
5. Support for S/PDIF Out

LAN

1. Realtek^® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) (Note 3)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (Note 4)
3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
4. (All PCI Express slots conform to the PCI Express 2.0 standard.)
5. 1 x PCI slot

Multi-Graphics Technology

1. Support for 2-Way/3-Way/4-Way AMD CrossFire™/NVIDIA^® SLI™ technology

Storage Interface South Bridge:

1. 6 x SATA 6Gb/s connectors (SATA3 0~5) supporting up to 6 SATA 6Gb/s devices
2. Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

2 x Marvell^® 88SE9172 chips:

1. 2 x SATA 6Gb/s connectors (GSATA3 6~7) supporting up to 2 SATA 6Gb/s devices
2. 2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo connector) on the back panel supporting up to 2 SATA 6Gb/s devices (Note 5)
3. Support for RAID 0 and RAID 1

USB South Bridge:

1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, including 1 eSATA/USB Combo connector, 6 ports available through the internal USB headers)

2 x Etron^® EJ168 chips:

1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

IEEE 1394 VIA^® VT6308 chip:

1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x PCIe power connector
4. 8 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 2 x system fan headers
7. 1 x power fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 3 x USB 2.0/1.1 headers
12. 1 x USB 3.0/2.0 header
13. 1 x IEEE 1394a header
14. 1 x Trusted Platform Module (TPM) header
15. 1 x clearing CMOS jumper
16. 1 x clearing CMOS button
17. 1 x power button
18. 1 x reset button

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x optical S/PDIF Out connector
3. 1 x coaxial S/PDIF Out connector
4. 1 x IEEE 1394a port
5. 7 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 1 x eSATA/USB Combo connector
8. 1 x eSATA 6Gb/s connector
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller

1. iTE^® I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 6)

BIOS

1. 2 x 32 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for EasyTune (Note 7)
5. Support for Smart Recovery 2
6. Support for ON/OFF Charge

Bundle Software

1. Norton^® Internet Security (OEM version)

Operating System

1. Support for Windows 8/7/Vista/XP

Form Factor

1. E-ATX Form Factor; 30.5cm x 26.4cm
2.















• Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors
• GIGABYTE Ultra Durable™ 4 Technology
• 8+2 phase CPU VRM power design for AMD high-TDP CPU support
• GIGABYTE UEFI DualBIOS™
• 4-way AMD CrossFire™/ SLI™Support
• Realtek ALC889 with High Quality 108dB SNR HD audio
• Supports Dolby Home Theater audio
• GIGABYTE On/Off Charge™ for USB devices
• 4 USB 3.0 ports with GIGABYTE 3X USB power
• 8 SATA3 and 2 eSATA3/USB Combo ports with RAID support
• Power/Reset/Clr CMOS Onboard Quick Buttons

درود

[mInI_ClockEr 3349]

با سلام

گفتم این خبر رو هم بزارم شاید بدرد بعضی دوستان بخوره

CPU Overclocking On H87 And B85 Motherboards Made Possible By ASRock's Non-Z OC

Who ever said that only K series CPUs and the Z-family platform are capable of being overclocked? The avant-garde company ASRock has broken this limitation with an exciting new feature named Non-Z OC! Via this feature overclockers may install their K series CPUs to ASRock's Fatal1ty H87 Performance or any other H87 B85 chipset motherboards and start overclocking immediately!

The first ASRock motherboard that implements the Non-Z OC feature is Fatal1ty H87 Performance, which is also the H87 motherboard with the most number of power phases in the market currently. Along with its powerful 8 Power Phase design, the CPU frequency can be effortlessly overclocked up to 26%! Simply update to the latest version of our UEFI, then you'll find the Non-Z OC feature sitting in the OC Tweaker page, select a frequency from a couple of preset settings, restart, kick back to enjoy your drink and voila!

Once again, ASRock is dedicated to bringing you the best bang for the buck. Overclocking can be made affordable, satisfying and absolutely no sweat at all with Non-Z OC! And you may rest assured that besides Fatal1ty H87 Performance, all of our other H87 and B85 chipset motherboards are going to have Non-Z OC as well!



Note 1: Please realize that overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for the possible damage caused by overclocking.
Note 2: Because Non-Z OC is related to Intel's chipset, CPU and firmware, ASRock does not guarantee the availability of Non-Z OC in the future.

Download the latest BIOS with Non-Z OC for Fatal1ty H87 Performance

[mfirouzi1989 2383]

EVGA X79 Dark



http://www.evga.com/Products/Product.aspx?pn=150-SE-E789-KR

[mfirouzi1989 2383]

ZOTAC H87-ITX WiFi A Series

http://www.zotac.com/products/mainboards/intel-cpu/zotac-h87/product/zotac-h87/detail/h87-itx-wifi-a-series.html

[grealt 18]

دوستان اینا که با قیمت بالایی وارد میشن_اگه بشن_اونقدر خریدار داره؟؟

[mInI_ClockEr 3349]

با سلام

باز هم خبرهای تازه از چیپ های H87-B85-H81

اینبار با مین های الایت گروپ

نکته: جای تعجب داره ولتاژ ها

Now your K-Series CPUs don't necessarily need to go along with Z-Series chipsets to experience the joy of overclocking. ECS recently announced that its motherboards with all Intel 8 Series chipsets, including H87, B85, and H81, have the CPU overclocking ability, giving non Z-Series motherboard users the benefit of additional performance through CPU overclocking.

ECS has achieved Non-Z Series CPU overclocking with H87, B85, and H81 motherboards by simply adjusting the CPU Ratio inside the BIOS, offering an extremely easy way of overclocking your CPU. More importantly, H87, B85, and H81 CPU overclocking ability provides an affordable solution for seasoned or casual overclockers at a wide range or price levels.

ویرایش شده جولای 5, 2013 توسط momo000000

[HeX 11091]

با سلام

باز هم خبرهای تازه از چیپ های H87-B85-H81

اینبار با مین های الایت گروپ

نکته: جای تعجب داره ولتاژ ها

Now your K-Series CPUs don't necessarily need to go along with Z-Series chipsets to experience the joy of overclocking. ECS recently announced that its motherboards with all Intel 8 Series chipsets, including H87, B85, and H81, have the CPU overclocking ability, giving non Z-Series motherboard users the benefit of additional performance through CPU overclocking.

ECS has achieved Non-Z Series CPU overclocking with H87, B85, and H81 motherboards by simply adjusting the CPU Ratio inside the BIOS, offering an extremely easy way of overclocking your CPU. More importantly, H87, B85, and H81 CPU overclocking ability provides an affordable solution for seasoned or casual overclockers at a wide range or price levels.



عجب ولتاژهایی !؟

اگر قرار سری H با این ولتاژ ها اور کنه همون بهتر که اور نکنه !؟

1.75 برای زیر نیتروژن هست و فرکانس 6-7 گیگاهرتز نه 4800 !

[mInI_ClockEr 3349]

خود یوزر های techpowerup هم همین نکته رو گفتن

کم کم داره جالب میشه :D



[tabitha 2590]

یه سوال؟؟؟

این چیپها قرار بشه Ratio هاشون رو تغییر داد؟؟؟؟

[mfirouzi1989 2383]

H87M-PRO

http://www.asus.com/Motherboards/H87MPRO/

[mInI_ClockEr 3349]

با سلام

خب دوستان این هم از برند بایواستار

با بایوس جدیدش برای چیپ های H87 و B85  و ولتاژ های یکم بهتر برای هاسول ها



Biostar Announces BIOS Updates Enabling Overclocking on H87 and B85 Motherboards

BIOSTAR, maker of Embedded/IPC solutions, Graphics Cards, and Motherboards, has officially announced their complete range of Intel 8 series chipset motherboards, including H87, B85 and H81 have the CPU overclocking ability.

BIOSTAR has achieved the K series CPU overclocking by not only Z87, but as well as H87, B85, and H81 motherboards that giving all users an additional value and experiencing optimum overclcoking. Without any complicate setting, users just need to simply adjust the CPU ratio from BIOS setting. More importantly, BIOSTAR has once again offering an affordable solution to every overclockers.

[mInI_ClockEr 3349]

با سلام

دوستان اینجور که معلوم هست شرکت بلند آوازه اسوس هم برای اینکه از دیگر رقبا عقب نمونه به نظر یه کارهایی کرده در مورد مین هاش با چیپ H87 و ...

[mfirouzi1989 2383]

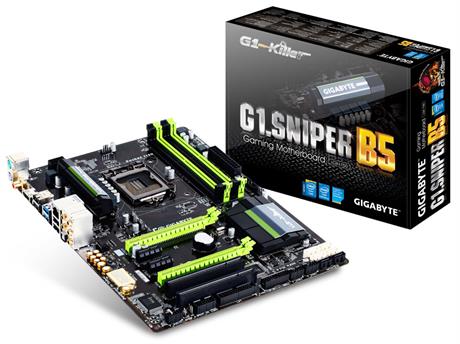

G1.Sniper B5 (rev. 1.0)

http://www.gigabyte.com/products/product-page.aspx?pid=4594#ov

[AmirMahmood 2245]

Coming Soon

Review

By AmirMahmood
