اخبار مادربردها و چیپست ها

[AmirMahmood 2245]

3770k vs 4770k

Coming soon

[AmirMahmood 2245]

دوستان از بين دما سنج

Bios

Core temp

Oc panel

به كدومش ميشه استناد كرد؟

[central_core 461]

دوستان از بين دما سنج

Bios

Core temp

Oc panel

به كدومش ميشه استناد كرد؟

فکر میکنید جز شما شخص دیگه ای هم از این بورد داره که تست کنه و جواب شما رو بده؟:D

[AmirMahmood 2245]

حتما كه نبايد داشته باشه ميشه از اطلاعات تو اينترنت هم جوابشو بدونه ، من كه چيزي پيدا نكردم گفتم شايد دوستان بدونن

[Mohamad Hajati 1039]

حتما كه نبايد داشته باشه ميشه از اطلاعات تو اينترنت هم جوابشو بدونه ، من كه چيزي پيدا نكردم گفتم شايد دوستان بدونن

همیشه دما سنج (دیجیتال)بهتر و دقیقتر از دمایی که توی بایوس نشون میده و یا نرم افزار های داخل ویندوز..

[AmirMahmood 2245]

ده درجه اختلاف دما وجود داره

[tabitha 2590]

یه روش هم هست که میانگین Core temp و OC panel رو بگیری...

میتونی از Real Temp هم استفاده کنی...

[atisoc0936 2558]

یه قول تشن از گیگابایت از سوکته 1356





GA-7PCSLD









GA-7PCSLD (rev. 1.0)

Intel^® C606 chipset

Print

• Intel^® Xeon^® processor E5-2400 product family
• 8 x RDIMM/UDIMM ECC DIMM slots, up to 128GB RDIMM ECC @ 1600MHz
• Dual GbE LAN (Intel 82574L)
• 2 x SATA 6Gbs + 4 x SATA 3Gbs
• 8 x SAS 3Gbs via mini-SAS
• ASPEED 2300





Entry Level Dual Processor Server Board

This model is dedicated to specific server applications that do not require particularly large memory and expansion platforms, although it keeps the best standards of today as well as GIGABYTE proven design.

Intel^® Xeon^® Processor E5-2400 Product Family

While it keeps up to 8 cores / 16 threads per socket and cache size up to 20MB, this new generation slightly narrows down some of the top capabilities of the E5-2600 family to focus on more mainstream pure server applications emphasizing cost and power efficiency first.

Unique Memory Performance

This board is an extremely high-value building block for demanding server applications, thanks to its ability to outperform its competitors in memory frequency. Indeed, this board supports 1.35V 16GB RDIMMs running at 1600MHz at full DIMM population, when the rest of the market can't support such configuration. Achieved through GIGABYTE's capabilities in design, PCB layout and BIOS fine-tuning, this feature will be most appreciated in industries where each incremental improvement in performance results in significant benefits, such as in finance or HPC applications.

Support of PCIe Generation 3.0

With the support of the latest PCI Express Gen 3.0 technology directly on the CPU, the GA-7PCSLX is fully configured to provide users with dramatically reduced latency and improved data bandwidth to get the most out of expansion cards. Moreover, it is built with a comprehensive variety of PCIe connectors to provide the most flexible expansion platform to the user.

SATA 3.0 Revision

The board can receive up to two SATA 6Gb/s devices to benefit from today’s best data transfer rates.

Server Management

With the ASPEED 2300 board management controller (BMC) and a separate management LAN port, this board offers comprehensive remote control options:

• iKVM
• IPMI 2.0
• Native PCIe support
• 2D Video Graphic Adapter with PCIe bus interface

Red Hat Certified Hardware

GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.



اینم جزئیات





Dimension CEB (305 x 267 mm) CPU Dual LGA1356 Sockets
Supports Intel^® Xeon^® processor E5-2400 product family Chipset Intel^® C606 Chipset Memory 8 x DIMM slots
Tri channel memory architecture
Up to 256GB RDIMM ECC
Up to 64GB UDIMM ECC
1333/1600/800 MHz
1066/1333(1.35V) MHz supported LAN 2 x Intel^® 82574L Gigabit Ethernet Controller support dual GbE LAN ports
1 x Management LAN Video Integrated in Aspeed 2300 SAS 2 x mini-SAS connectors (for 8 x SAS 3Gb/s ports) SATA 2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports RAID Function Intel SW RAID 0/1/5/10 Expansion Slots 1 x PCIe x16 (@Gen3 x16 bus) slot
1 x PCIe x16 (@Gen3 x8 bus) slot
1 x PCIe x8 (@Gen3 x4 bus) slot
1 x PCI 32/33MHz slot Internal I/O Connectors 4 x USB 2.0 headers Back Panel Connectors 4 x USB 2.0 ports
1 x VGA port
1 x COM port
3 x RJ45 Server Management ASPEED 2300
IPMI 2.0, iKVM OS Supported Windows Server 2003 R2 + SP2 (32bit)
Windows Server 2003 R2 + SP2 (64bit)
Windows Server 2008 SP2 (32bit)
Windows Server 2008 SP2 (64bit)
Windows Server 2008 R2 (64bit)

Red Hat ELES 6 Update2 x86 (32bit)
Red Hat ELES 6 Update2 x86 (64bit)

SuSE ES 11 SP1 x86 (32bit)
SuSE ES 11 SP1 x86 (64bit)



[mInI_ClockEr 3376]

با سلام

خبری بسیار خوشحال کننده

بالاخره برند سوپر میکرو بعد از سالیان طولانی به طور رسمی اولین مین خودش رو برای کاربران عادی بیرون داده که با چیپ محبوب Z87 هست.  تصویری از این محصول دراینترنت پخش شده

(از تصویر کیفیت قطعات کاملاً مشخص هست)

لینک خبر

http://www.techpowerup.com/188259/supermicro-dips-its-toes-in-diy-motherboard-market-unveils-c7z87-oce.html

جزئیات خبر:

Known more for its server and workstation motherboards; and rackmount server chassis; Supermicro dipped its toes into consumer (DIY) motherboards, announcing the C7Z87-OCE, a socket LGA1150 motherboard based on the Intel Z87 Express chipset. Built in the standard ATX form-factor, this board draws power from a combination of 24-pin ATX, and 8-pin EPS connectors. It features a rather bland blue PCB, with seemingly basic heatsinks over the chipset and CPU VRM. In reality, the 22 nm-built Z87 Express PCH, with a 4.1W TDP can make do with a heatsink like that. The one on the VRM, on the other hand, is suspect. It appears to use a 6-phase digital PWM circuitry with driver-MOSFETs.

The LGA1150 socket is wired to four DDR3 DIMM slots, and three PCI-Express 3.0 x16 slots (x16/NC/NC, x8/x8/NC, x8/x4/x4). A trio of close-ended PCI-Express 2.0 x4 find room in between them. The board offers a total of eight SATA 6 Gb/s ports, six from the Z87 PCH, two from a third-party controller. Also on offer, are eight USB 3.0 ports, four on the rear panel, four by headers. The board offers 8-channel HD audio with optical SPDIF output, a pair of gigabit Ethernet interfaces, Thunderbolt (which doubles up as mini-DisplayPort), dual-link DVI and D-Sub display outputs. Although driven by AMI Aptio UEFI BIOS, it features a classic keyboard-driven setup program UI. The company didn't release pricing. Find a complete review at the source.

عکس محصول:

[mInI_ClockEr 3376]

اینم بررسی کامل محصول :

http://www.tweaktown.com/reviews/5645/supermicro-c7z87-oce-intel-z87-motherboard-review/index.html

[mfirouzi1989 2383]

Z87-G55

http://www.msi.com/product/mb/Z87-G55.html









H81M-P33

www.msi.com/product/mb/H81M-P33.html











H81M-E33

http://www.msi.com/product/mb/H81M-E33.html

ویرایش شده آگوست 4, 2013 توسط mfirouzi1989

[mfirouzi1989 2383]

GA-6LXSV (rev. 1.0)

http://b2b.gigabyte.com/products/product-page.aspx?pid=4625#ov











[mfirouzi1989 2383]

MAXIMUS VI FORMULA

http://www.asus.com/Motherboards/MAXIMUS_VI_FORMULA/













MAXIMUS VI IMPACT

http://www.asus.com/Motherboards/MAXIMUS_VI_IMPACT/

[mfirouzi1989 2383]

Z87 MPOWER SP

http://www.msi.com/product/mb/Z87-MPOWER-SP.html#overview

[mfirouzi1989 2383]

H87-G43 GAMING

http://www.msi.com/product/mb/H87-G43-GAMING.html#overview











B85-G43 GAMING

http://www.msi.com/product/mb/B85-G43-GAMING.html#overview

[atisoc0936 2558]

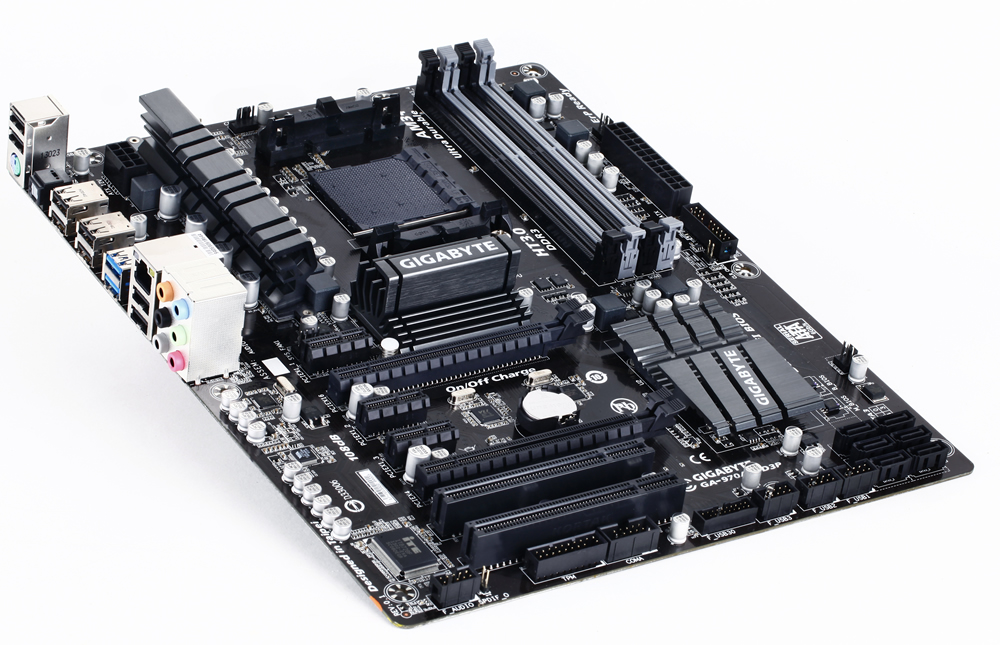

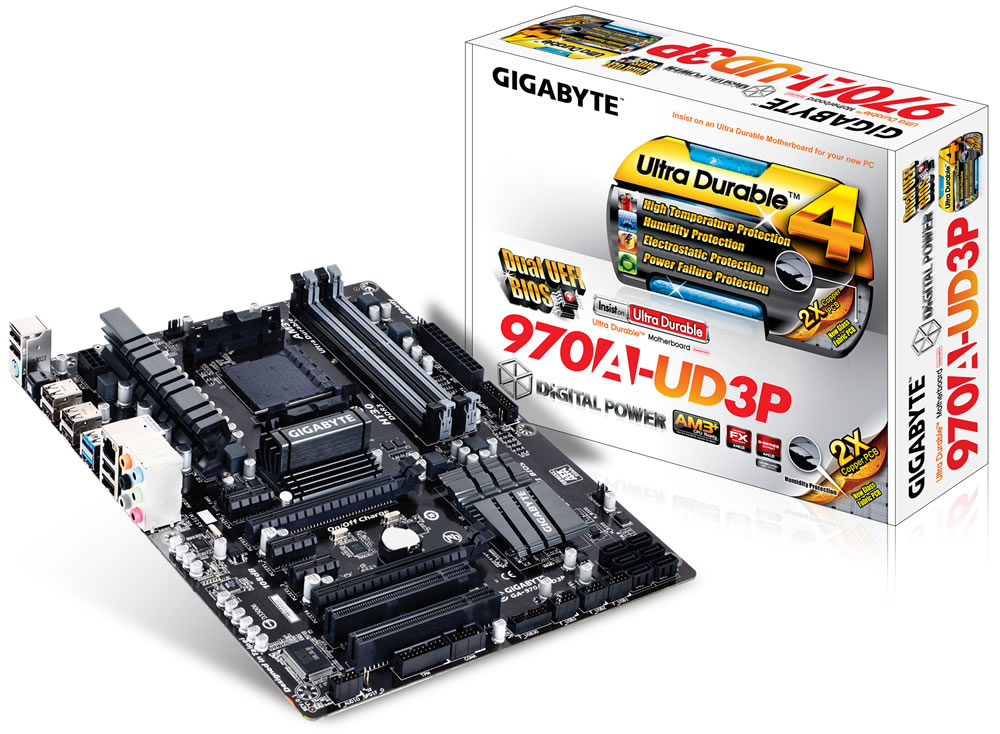

GA-970A-UD3P (rev. 1.0)0



Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors

GIGABYTE Ultra Durable™ 4 Technology

GIGABYTE Digital Power Engine

8+2 phase CPU VRM power design for AMD high-TDP CPU support

GIGABYTE UEFI DualBIOS™

2-way CrossFire™ Support

VIA 2021 with High Quality 108dB SNR HD audio

GIGABYTE On/Off Charge™ for USB devices

4 USB 3.0 ports with GIGABYTE 3x USB power

6 SATA3 ports with RAID support

GbE LAN with high ESD Protection









To enable AM3+ AMD FX-Series CPU support, please update your motherboard with the most current BIOS found in your motherboard’s download section.



 GIGABYTE Digital Power Engine



 GIGABYTE Ultra Durable motherboards take advantage of an exclusive Digital PWM controller array, to deliver maximum and stable power to latest processors. Using digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. This Digital Power system, with Precise Auto Voltage Compensation to make real-time adjustments and deliver a steady flow of power to the system, no matter the loading. This all new, digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE motherboard.



 GIGABYTE Ultra Durable™ 4 – Insist on an Ultra Durable Motherboard





 GIGABYTE Ultra Durable™ 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats...more



 UEFI DualBIOS™ Technology



 With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.



 Multi-display support with AMD CrossFire



 Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.



 108dB Signal-to-Noise ratio playback



 GIGABYTE motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.



 Introduction



 The 970A-UD3P motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.



 Get Ready for New Generation of 32nm AMD AM3+ CPU



 GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.



 Supports next generation of 45nm AMD AM3 CPU



 This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.



 GIGABYTE 333 Onboard Acceleration



 GIGABYTE motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on USB ports for more power hungry USB devices.



 On/Off Charge Technology



 GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more

 *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.

 *Whether to support 3X USB power design, it may vary by models.





 ErP Lot 6 support



 The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.



CPU AM3+ Socket:

AMD AM3+ FX processors

AMD AM3 Phenom™ II processor/ AMD Athlon™ II processor

 (Please refer "CPU Support List" for more information.)

Hyper Transport Bus 4800 MT/s

Chipset North Bridge: AMD 970

South Bridge: AMD SB950

Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)

 (Please refer "Memory Support List" for more information.)

Audio VIA® VT2021 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 3)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

3 x PCI Express x1 slots

 (All PCI Express slots conform to the PCI Express 2.0 standard.)

2 x PCI slots

Storage Interface South Bridge:

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

USB South Bridge:

14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

 VIA® VL805 chip:

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

3 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

1 x Trusted Platform Module (TPM) header

Back Panel Connectors 1 x PS/2 keyboard/mouse port

1 x optical S/PDIF Out connector

8 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

6 x audio jacks (Center, Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller iTE® I/O Controller Chip

H/W Monitoring System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control (Note 4)

BIOS 2 x 32 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for EasyTune (Note 5)

Support for ON/OFF Charge

Support for Smart Recovery 2

Bundle Software Norton® Internet Security (OEM version)

Operating System Support for Windows 8/7/Vista/XP

Form Factor ATX Form Factor; 30.5cm x 24.4cm

[Prime 315]

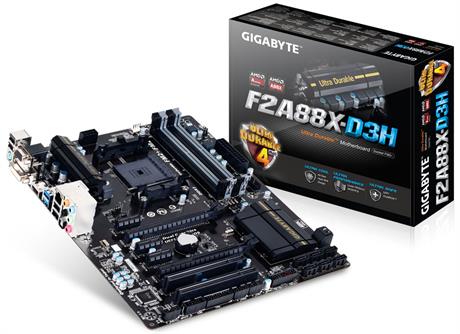

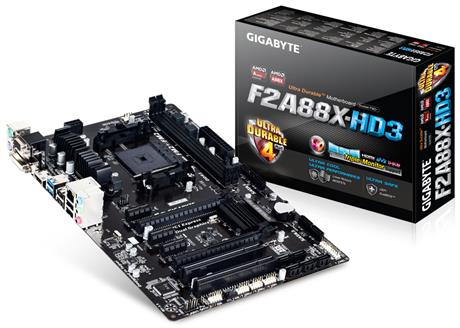

GIGABYTE A88X Series Motherboards



Supports Forthcoming AMD Kaveri FM2+ Plus Existing FM2 APUs





GIGABYTE First AMD Gaming Motherboard:

G1.Sniper A88X





[Prime 315]

ASUS A88XM-A

ASUS A88XM-Pro



لازم به ذکر که چیپ جدید AMD یعنی A88X از PCI-Express3.0 کاملا پشتیبانی میکنه

ویرایش شده آگوست 17, 2013 توسط Saeed#

[fireinpole 924]

گیگابایت و عرصه مادربوردهای  +FM2 ه A88X با پشتیبانی از پردازنده های kaveri







http://wccftech.com/gigabyte-launches-fm2-socket-based-g1sniper-a88x/#ixzz2cH2QI2WC











ویرایش شده آگوست 18, 2013 توسط fireinpole

[atisoc0936 2558]

•
•

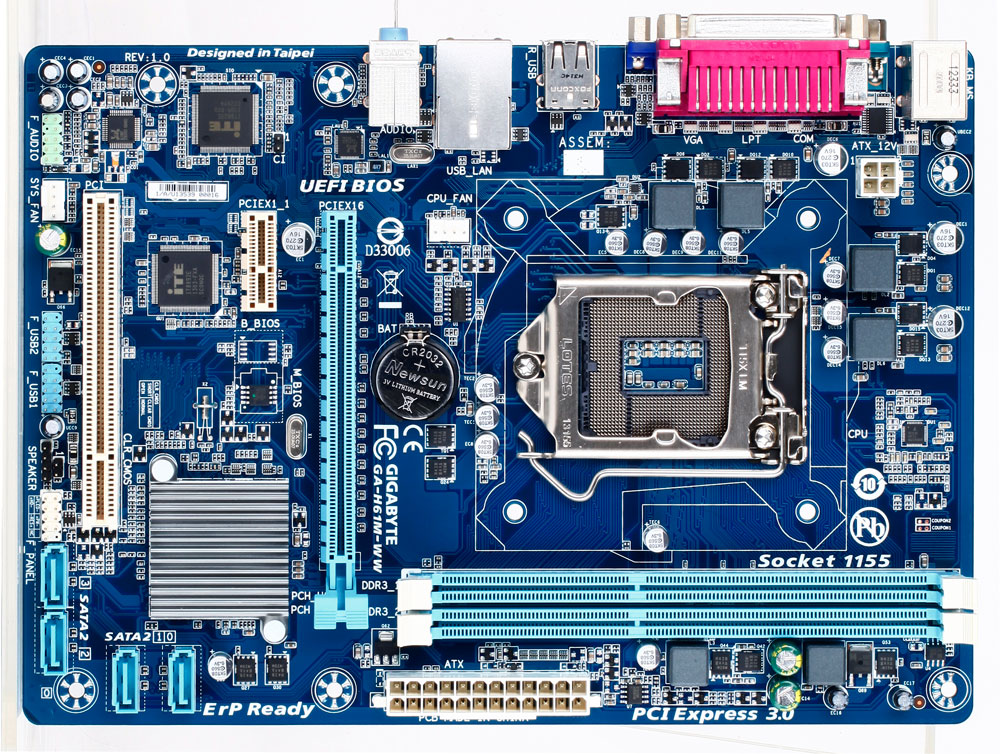

• GIGABYTE Ultra Durable™ 4 Classic
• Supports 3rd Gen. Intel^® 22nm CPUs and 2nd Gen. Intel^®Core™ CPUs (LGA1155 socket)
• Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
• Supports 3rd generation PCI-Express interface
• Enhanced Intel HD Graphics 2000/3000 integrated with the processor

RSS

GIGABYTE Ultra Durable™ 4 Classic

GIGABYTE Ultra Durable™ 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.
    Humidity Protection
Humidity can play havoc on a motherboard's circuitry. GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

        Electrostatic Protection
GIGABYTE Ultra Durable™ 4 Classic motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

        Power Failure Protection
GIGABYTE uses Anti-Surge ICs to protect the motherboard against power surges.
        High Temperature Protection
GIGABYTE uses Low RDS(on) MOSFETs which are rated to work at higher temperatures.



Intel^® Rapid Start Technology

Intel^® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows^® 7 is a few seconds without having the PC go through a full system boot. With Intel^® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.



Intel^® Smart Connect Technology

Intel^® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go.

Auto Sync with Cloud
No manual interaction required to synchronize with cloud services.

Data Ready
Email, social media, and cloud apps always updated and available at power on.



Support Intel 22nm processors

GIGABYTE motherboards support Intel 22nm processors.



Designed for PCI Express Gen.3 Support

The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
* PCIe Gen. 3 is dependent on CPU and expansion card compatibility.



Intel^® HD Graphics Core 2000/3000 Enhanced Visual Features

Intel^® Quick Sync Video
Intel^® Quick Sync Video provides breakthrough media processing for incredibly fast editing and sharing.

Intel^® InTru™ 3D
2nd Generation Intel^® Core™ Processors offer an outstanding Blu-Ray Stereo 3D experience in full high definition resolution (1080p) with HDMI 1.4.

Intel^® Advanced Vector Extensions (AVX)
Increases the performance of Accelerated Floating Point and Vector Computing Intensive Applications with minimal power gains.



On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.



ErP Lot 6 support

The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.





http://www.gigabyte.com/products/product-page.aspx?pid=4706#ov



[mfirouzi1989 2383]

Z87-PRO(V EDITION)

http://www.asus.com/Motherboards/Z87PROV_EDITION/

[mfirouzi1989 2383]

GA-F2A88X-D3H (rev. 3.0)

http://www.gigabyte.com/products/product-page.aspx?pid=4714#ov

[mfirouzi1989 2383]

FM2A88X Extreme6+

http://www.asrock.com/mb/AMD/FM2A88X%20Extreme6+/









FM2A88M Extreme4+

http://www.asrock.com/mb/AMD/FM2A88M%20Extreme4+/

[mfirouzi1989 2383]

GA-F2A88X-HD3 (rev. 3.0)

http://www.gigabyte.com/products/product-page.aspx?pid=4715#ov

[ahmadshar 11]

اولین مادربرد تاندر بولتی گیگابایت با چیپست z87





نمی دونم کسی قبلا خبرداده یانه وظیفه دونستم که بگم.

http://www.gigabyte.us/products/product-page.aspx?pid=4593#ov

ویرایش شده سپتامبر 16, 2013 توسط ahmadshar
